XYN-P Packaging Machine For Salad Dressing

VFFS machine


Specification

  • Reliable VFFS machines manufacturers from Taiwan

  • Continuous Motion, High Speed Operation, Applied for liquid or paste e.g. Salad tube

  • Smart & Full Servo, PLC, HMI Control Operation System

  • Easy operation in changing packing size without changing forming mold

  • Packaging Length and speed are easily adjusted by numerical on HMI

  • Photoelectric cell perform exact control

  • Pillow style packing bag

  • Apply laminated film e.g. NYLON, PET, OPP/PE, AL/PE

  • Packing Size : W40mm~60mm, L60mm~180mm

  • Packing Weight Range : 3~120g

  • Packing Speed : 30~150 bags/min. (depending on product & weight)

  • Power : 220V. 3 Phase, 50/60HZ

  • Machine Dimensions : L1800mm x W1000mm x H2300mm

  • Pressure Air : 5~6 kg/cm2

XYN-01 Packaging Machine For Liquid or Paste

VFFS machine

 Specification

  • Continuous Motion, High Speed Operation, Applied for liquid or paste

  • Smart & Full Servo, PLC, HMI Control Operation System

  • Easy operation in changing packing size without changing forming mold

  • Packaging Length and speed are easily adjusted by numerical on HMI

  • Photoelectric cell perform exact control

  • 3 Side or 4 Side Seal packing sachet

  • Apply laminated film e.g. NYLON, PET, OPP/PE, AL/PE

  • Packing Size : W40mm~120mm, L60mm~180mm

  • Packing Weight Range : 3~120g

  • Packing Speed : 30~300 bags/min. (depending on product & weight)

  • Power : 220V. 3 Phase, 50/60HZ

  • Machine Dimensions : L1800mm x W1000mm x H2300mm

  • Pressure Air : 5~6 kg/cm2

  • Superior high speed upto 500 bpm is available upon request.

XYN-01 Samples

XYN-01 Samples

XYN-03 MULTI LANES

(1~4 LANES)

Multi-Lane Packaging Machine For Liquid or Paste

VFFS machine

Specification

  • Machine available in one to four lanes

  • Continuous Motion, High Speed Operation, Applied for liquid or paste e.g. ketchup, sweet sour sauce

  • Smart & Full Servo, PLC, HMI Control Operation System

  • Easy operation in changing packing size without changing forming mold

  • Packaging Length and speed are easily adjusted by numerical on HMI

  • Photoelectric cell perform exact control

  • 4 Side Seal packing sachet

  • Apply laminated film e.g. NYLON, PET/LLDPE, AL/LLDPE

  • Packing Size : W40mm~120mm, L60mm~180mm

  • Packing Weight Range : 3~120g

  • Packing Speed : 120~500 bags/min. (depending on product, weight & packing film quality)

  • Power : 220V. 3 Phase, 50/60HZ

  • Machine Dimensions : L1800mm x W1000mm x H2400mm

  • Pressure Air : 5~6 kg/cm2



XYN-03 Sample

PS2005M-AF Multi Lanes

Multi-Lanes Packaging Machine For Sugar Sticks

VFFS machine

Specification

  • Applicable for filling snack, sugar, salt, rice, starch, spice, coffee powder and coffee bean, thin granule stuff and powder materials

  • Compact driving system

  • computerized & control system combined with finger-touch screen (HMI) has simplified operation. Designed for low power consumption, easy maintenance. Durable structure.

  • Bag length will be detected by sensor and scanner.

  • Applied a highly effective servorized-driver accurately controlling the speed of sealing and CAM motion.

  • Packing Type : Pillow Seal stick

  • Packing Material : Laminated film e.g. OPP/PE, PET/PE AL/PE

  • Packing Size : W35mm, L100mm~130mm (5 lanes)

  • Packing Weight Range : 5~10g (depend on density)

  • Packing Speed : 20~40 stick/min. * 5 lanes (100~200 stick/min) (depending on product, weight & packing film quality)

  • Max. Film Width : 420mm

  • Diameter of roll film : OD 400mm / ID 76.2mm

  • Power : 220V. 3 Phase, 50/60HZ

  • Pressure Air : 6~7 kg/cm2 (air compressor excluded)

PS2005M-AF sample

MM07-AF

Packaging Machine with Auger Filler

Available Fillers are Liquid/Paste Filler, Auger Filler, Weighing Filler, Cup Filler which will be decided according to the product type and character.

VFFS machine

Specification

  • Applicable for filling sugar, salt, rice, starch, spice, coffee powder and coffee bean, thin granule stuff and powder materials.

  • Reasonable arrangement of push buttons on the control panel provides simple operation.

  • Changing forming tube be accomplished in minutes.

  • Applied a servorized-driver for pulling film accurately.

  • The machine is made of high standard of Aluminum Alloy and other Anti-Corrosive material.

  • Exclusive design of Side-Sealing System makes it possible of air-tight sealing.

  • Packing Type : Pillow or Gusset Crease

  • Packing Material : OPP/PE, AL/PE or other laminated film

  • Packing Size : W 60mm~220mm, L 80mm~300mm

  • Operation Speed : 10~60 bag/min.

  • Weight Range : 100g~1000g depending on product density

  • Machine Dimension : L 1200mm x W1300mm x H2500mm

  • Power : 220V. 3 Phase, 50/60HZ

  • Pressure Air : 5~6 kg/cm2 (air compressor excluded)

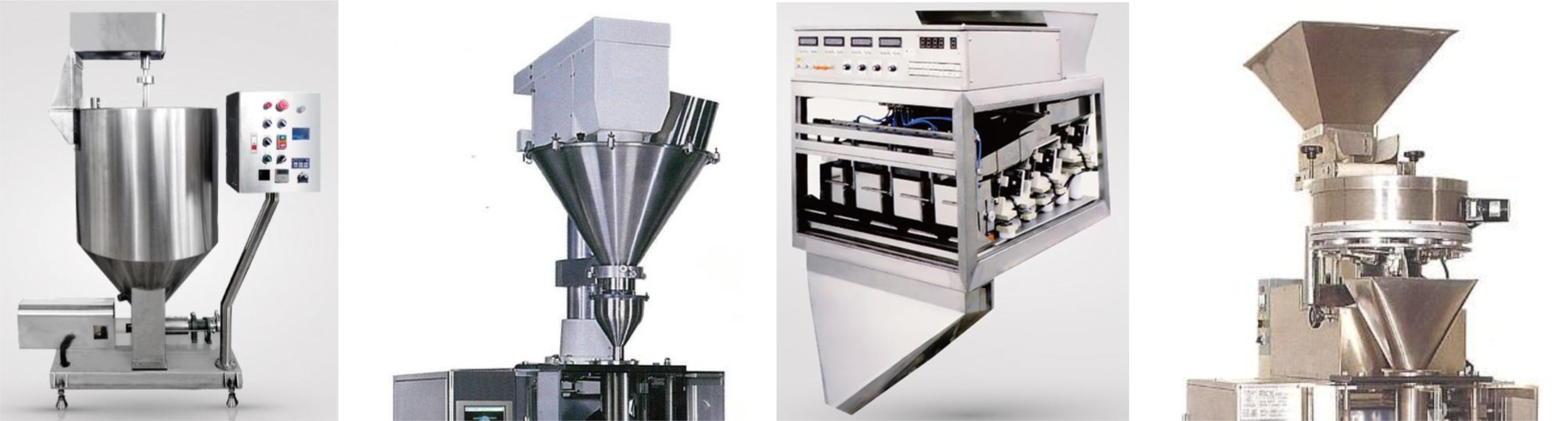

Available Fillers are Liquid/Paste Filler, Auger Filler, Weighing Filler, Cup Filler which will be determined according to the product type and character.

MM07-AF Sample
